BPM-120A Blister Packaging Machine

BPM-120A blister packaging machine is primarily designed for packaging various pharmaceutical products, including capsules, tablets, and ampoules. It can also be used for packaging small food items and medical devices, ensuring product protection and integrity. The machine offers versatile applications with customizable forming areas and depths to accommodate different product sizes and shapes.

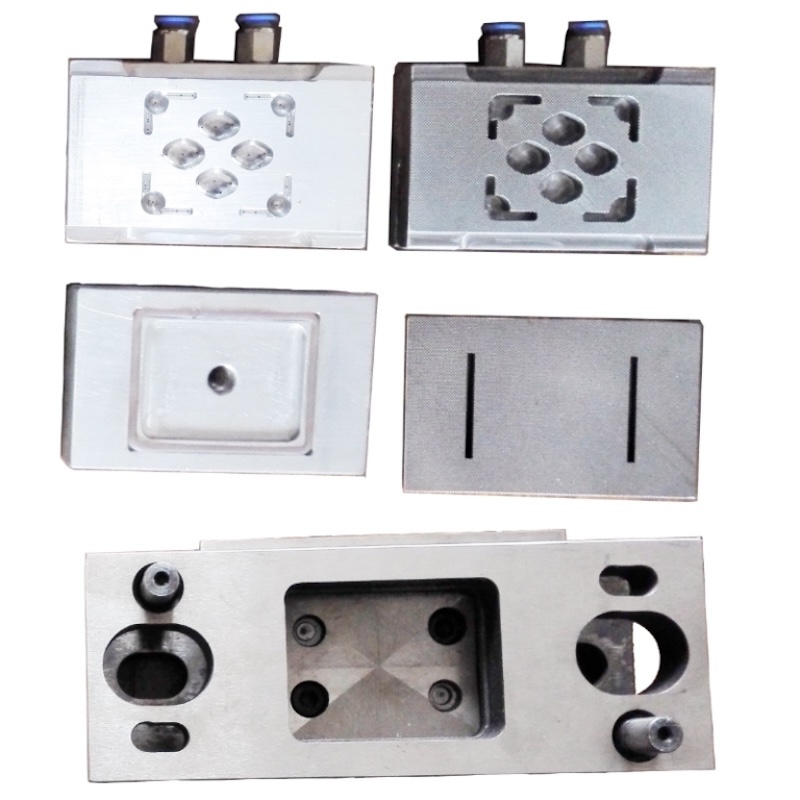

BPM-120A blister packing machine is to package products into transparent plastic blisters or aluminum blisters through heat-forming/cold-pressing, forming, filling, sealing, and cutting. It can produce both aluminum-aluminum blisters and aluminum-plastic blisters according to changing the corresponding molds.

Please inquire via the following APPS:

Technical Parameters

Model		BPM-120A
Punching Frequency	Aluminum-Plastic	10-40 times/minute
	Aluminum-Aluminum	10-30 times/minute
Adjustable Stroke Range		30-100mm
Maximum Forming Area		120×90mm
Maximum Forming Depth		14mm (customizable)
Main Motor Power		0.75kW
Upper Heating Power		0.5kW
Lower Heating Power		0.5kW
Heat Sealing Power		0.5kW
Air Pump Flow Rate		≥0.2m³/min
Air Pump Pressure		0.4-0.6Mpa
PVC		0.25-0.5×135mm
PTP		0.02-0.035×135mm
Dialysis Paper		50-100g×135mm
Dimensions		1700×650×1060 mm
Weight		Approx. 500kg

Main Electrical Components List

Name	Model	Origin	Quantity
Circuit Breaker	DZ47-25	Chint	1
Transformer	10VA	Chint	1
Emergency Stop	Y09011ZS	Chint	1
Solid State Relay	SSR-40	HUGO	2
Thermocouple	K/2m	Yatai	2
Temperature Controller	NG-5411V	Yatai	2
Computer Board	–	Tianheng	1
Inverter	VFD015M21A	Delta	1
Color Mark Photoelectric (Optional)	Z3N-T22	Julong	1
Proximity Switch	PR12-4DN	Autonics	1
Relay	HHC68B	Xinling	4
Delta Extension Cable	EG2010A	Delta	1
Solenoid Valve	220V	Zhejiang Ningbo	4
Air Regulating Valve	2000	Zhejiang Ningbo	1
Main Drive	0.75KW CH28 Speed Ratio 30	Zhejiang Dongfang	1
